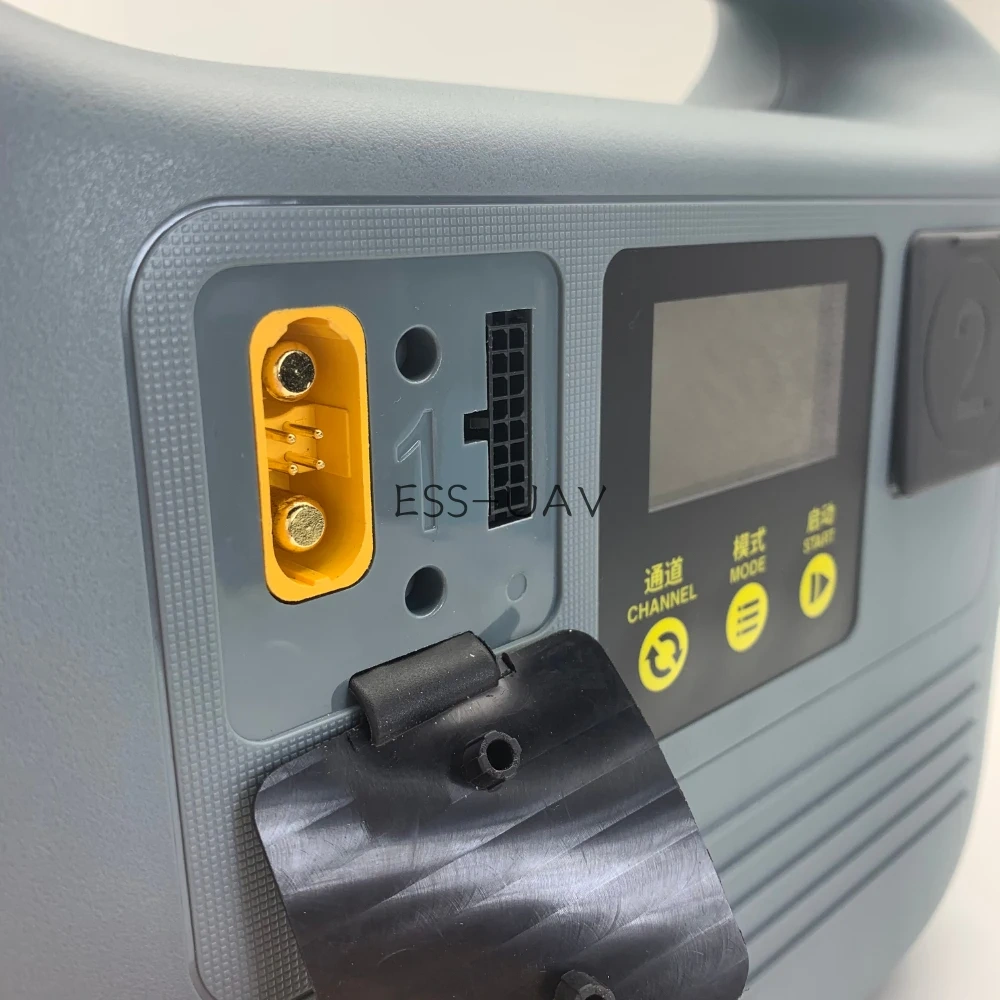

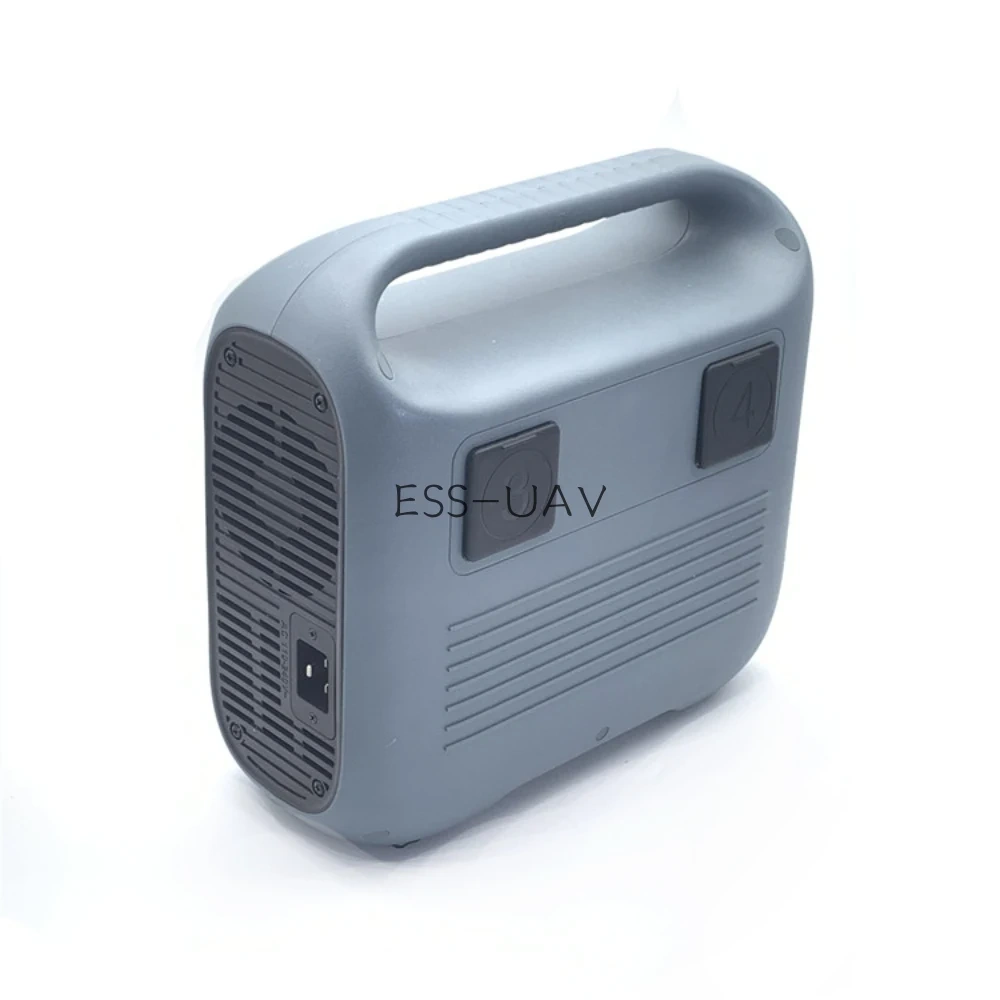

SkyRC PC2500 2500W 4 Channel 45A battery charger is an intelligent charger that integrates CAN communication for smart batteries and ordinary lithium batteries. It is compatible with Tattu Swift 12S 16000MAH, 22000MAH, Swift Pro 12s 22000mah, Okcell 12S 8000mah to 28000mah battery, FullyMAX battery, Super Poly Power battery and etc.
SkyRC PC2500 battery charger can connect four batteries at the same time. The charger's maximum output power is up to 2500W, with three modes: Fast(Fast Charge), Charge(Slow Charge), Storage. The charger can recognize the batteries with customized CAN communication instantly. Charging is convenient and straightforward with a better user experience.
Main Features:
--- The Max. output can reach 2500W and the Max. Current is 45A, a 12S 16000mah battery can be fully charged in about 15 minutes;
---The LCD shows the charging process in real time, such as the charging time, battery percentage, single cell voltage and etc;
---PC2500 charger comes with built-in CAN Bus communication;

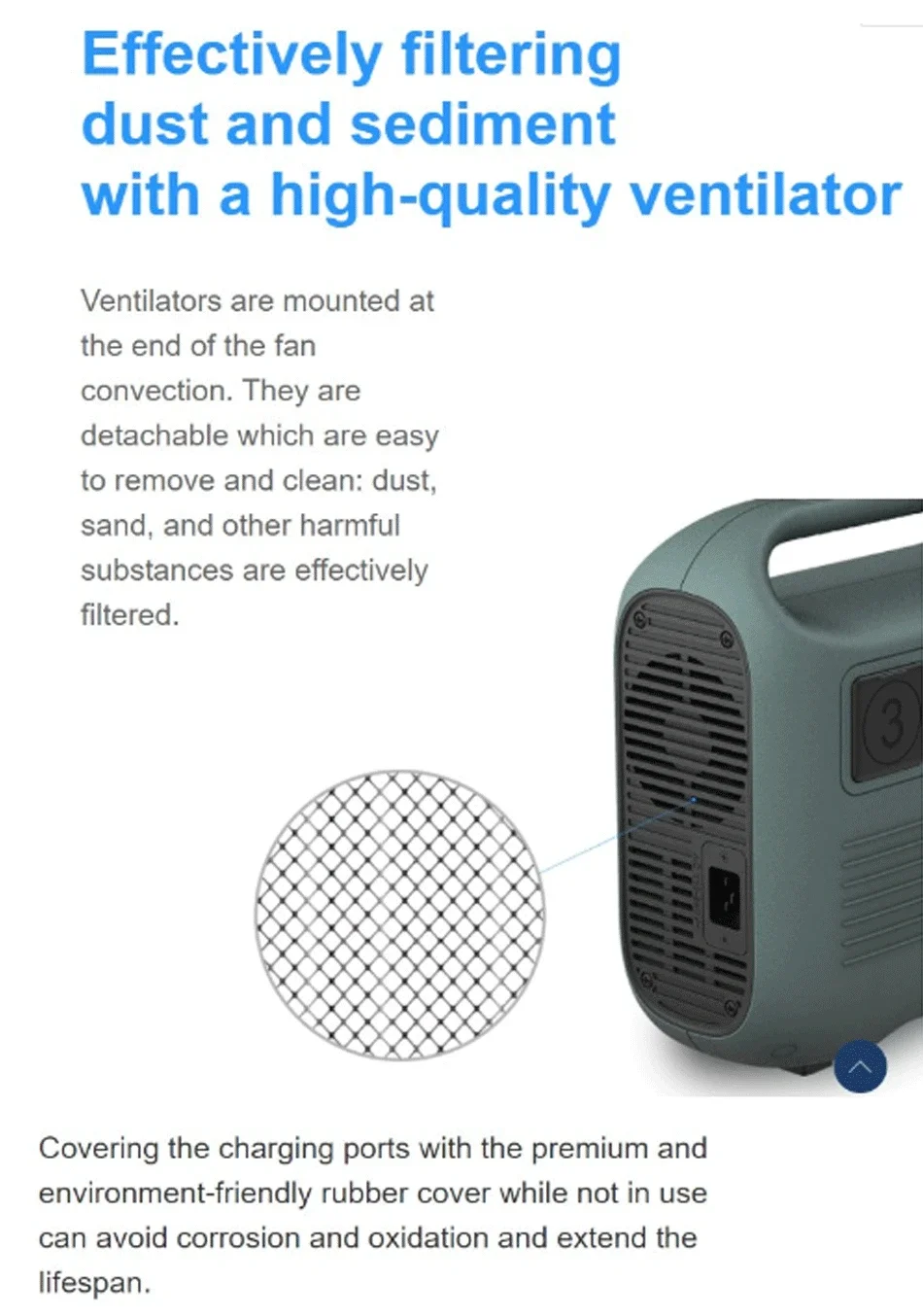

---Effectively filtering dust and sediment with a high-quality ventilator
---Short Circuit Protection;
---Reverse Polarity Protection;
---Over-temperature Protection.
Specifications:
Item brand: SKYRC
Item Model: PC2500
Size and Weight
Housing Material: Plastic (Flame Retardant PC+ABS)
Size: 294mmx139mmx282mm
Weight: 5.6Kg
Power Supply: AC Input: 100-240V
Charging Power:
AC220V：2500W
AC120V：1200W
Battery
Type：Lithium Battery
LiPo Battery Cells： 12S/14S
LiHV Battery Cells：12S
Charge/Discharge
AC 220V
Fast Charge Current: max. 45A single channel
Slow Charge Current: max. 20A single channel; max. 45A multi channels in total
AC 120V
Fast Charge Current: max. 1200W single channel
Slow Charge Current: max. 20A single channel; max. 1200W multi channels in total
Storage Discharge Power
Main Port: 75W Max.
Balance Port: 80W Max. (The current will be adjusted based on the balance port’s temp)
Max Charge Output Power
AC220V Output Power: 2500W
AC120V Output Power: 1200W
Discharge Power：60W
Charging Mode：Fast Charge, Slow, Storage
Working and Storage
Working Temperature: 0℃-40℃
Working Humidity: 0%-75%
Storage Temperature: -10℃-70℃
Storage Humidity: 0%-75%
